How does the TERMET APLA boiler work? A practical user guide.
Modern condensing boilers are designed to combine high efficiency with maximum ease of use. This is precisely the case with the TERMET APLA boiler, which, despite its advanced technology, remains intuitive in everyday use. However, it's worth taking the time to understand its operation; it will make using your heating and hot water even more convenient and, above all, more informed.
In this article, you will learn:
• how to read information from the boiler display,
• what the key symbols and messages mean,
• what the device's operating modes are and when to use them,
• how to set the heating and domestic hot water temperature,
• why the boiler sometimes pauses,
• what additional functions increase comfort and safety.
Intuitive Control Panel

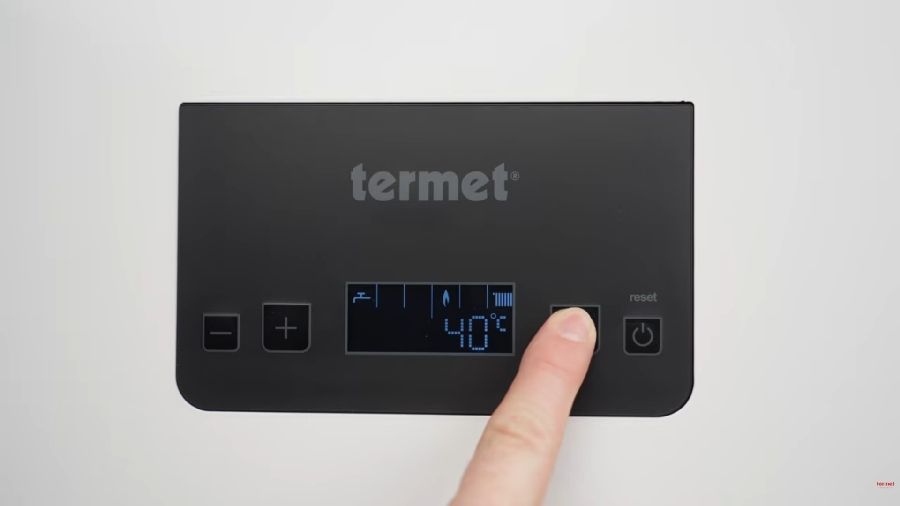

The basis of user communication with the TERMET APLA boiler is the control panel with display. It is divided into two sections: the left side is responsible for domestic hot water, while the right side is for central heating. This design allows you to quickly identify which operating mode is currently active without having to delve into the manual.
During boiler operation, various symbols appear on the screen to inform you about its status. One of the most important is the flame symbol. This indicates that the burner is currently operating. Its position is also important – if it is visible on the left side, it indicates domestic hot water heating, while on the right side, it indicates home heating. A flashing radiator symbol may seem alarming at first glance, but in practice, it's completely normal. It indicates a temporary interruption in operation when the boiler has reached the set temperature and needs a moment to stabilize. After a short time, it automatically resumes operation.
Mode tailored to your needs
Daily use of the boiler largely depends on selecting the appropriate operating mode. TERMET APLA offers three basic modes: standby, summer, and winter. Standby mode is a state in which the boiler does not heat water or rooms, but remains active for safety reasons. During this time, the anti-freeze function operates, among other things, to protect the system from damage in low temperatures. The boiler starts when the water temperature drops below 8°C and heats it until it reaches 20°C to prevent freezing. Summer mode is ideal outside the heating season, when the boiler is solely responsible for preparing domestic hot water. The boiler display will only show a tap symbol. In winter mode, the device operates at full capacity, providing both home heating and access to hot water.
It's worth remembering to switch from winter to summer mode when the heating season ends. Changing the operating mode is incredibly simple and involves holding a single button on the panel. Temperature control is similarly intuitive. For heating, simply press the radiator symbol and adjust the value using the plus and minus buttons. Domestic hot water temperature control works similarly. It's also worth remembering that heating domestic hot water has priority over heating, meaning that when the tap is turned on, the boiler will focus on this task first.
Additional Comfort-Enhancing Features
The TERMET APLA boiler is also equipped with features that increase comfort and efficiency. One of these is the ability to operate in weather-compensated mode. If an outside temperature sensor is connected to the device, the boiler automatically adjusts the heating water temperature to the outside conditions. This makes the system more economical, and the user doesn't have to manually adjust settings every time the weather changes.
The automatic safety and maintenance features are also noteworthy. An example is the anti-legionella function in systems with a storage tank, which periodically heats water to a high temperature, eliminating the risk of bacterial growth. Another solution is automatic system venting, which can activate, for example, after a power outage. Although the symbols appearing on the display may seem confusing, they actually mean that the boiler itself ensures the proper operation of the entire system.
It's important to note that the TERMET APLA boiler is designed so that if the device detects an irregularity, the user is informed with an appropriate message. A key or reset symbol will then appear on the control panel. At this point, the boiler automatically stops operation to prevent possible damage. In many cases, simply removing the cause and restarting the device is sufficient, but if problems persist, it's worth seeking assistance from an authorized service center.
Understanding how a TERMET APLA boiler works not only allows for more convenient operation but also for more informed and economical use of your heating system. While it may seem like an advanced device at first glance, in practice, its daily operation comes down to a few simple steps that quickly become a natural part of your home routine.
If you want to learn how to use the TERMET APLA boiler, watch our instructional video:
