Buffer tank Termet Aqua 200 for DHW
TERMET AQUA cylinders (with a double-coiled coil) are designed exclusively for heating, storing, and supplying domestic hot water. The device is made of high-quality steel, with internal anti-corrosion protection achieved through enamel coating. An additional protective element is the protective anode, which is a consumable and requires periodic mandatory replacement (see warranty terms).
• Designed for use with heat pumps
• Domestic hot water cylinders Equipped with a double-coiled coil (coil surface area 2.53 m²), which ensures a large heat exchange surface and proper heat transfer from the heat pump.
• Threaded coupling ensures dimensional accuracy and tight connections.
• Ideal for storing and heating domestic hot water.
• Easy to install.
• Energy efficiency class B.
• Made of high-quality steel, internally enameled for high corrosion protection (enameled according to DIN 4753-3).
• Fully enameled connection ports.
• Includes a thermometer and temperature sensor cover.
• Large inspection opening for easy cleaning and monitoring of the tank.
• Option to connect an electric heater.
• High-quality polyurethane foam thermal insulation.
• 50 mm insulation thickness.
• Aesthetically pleasing Blueshell casing (polyethylene cover).
• Includes a magnesium anode.
• Maximum domestic hot water temperature 95°C.
• Maximum pressure 10 bar. bar
• have a hygiene certificate
- Cleaning and inspection flange diameter [mm]:
- 100
- Net weight (without water) [kg]:
- 112
- Electric heater connection:
- 1 1/2"
- Magnesium anode connection:
- 1 1/4"
- Additional connection:
- 1 1/4"
- Coil flow/return connection:
- 1 1/4"
- Temperature sensor connection:
- 1/2"

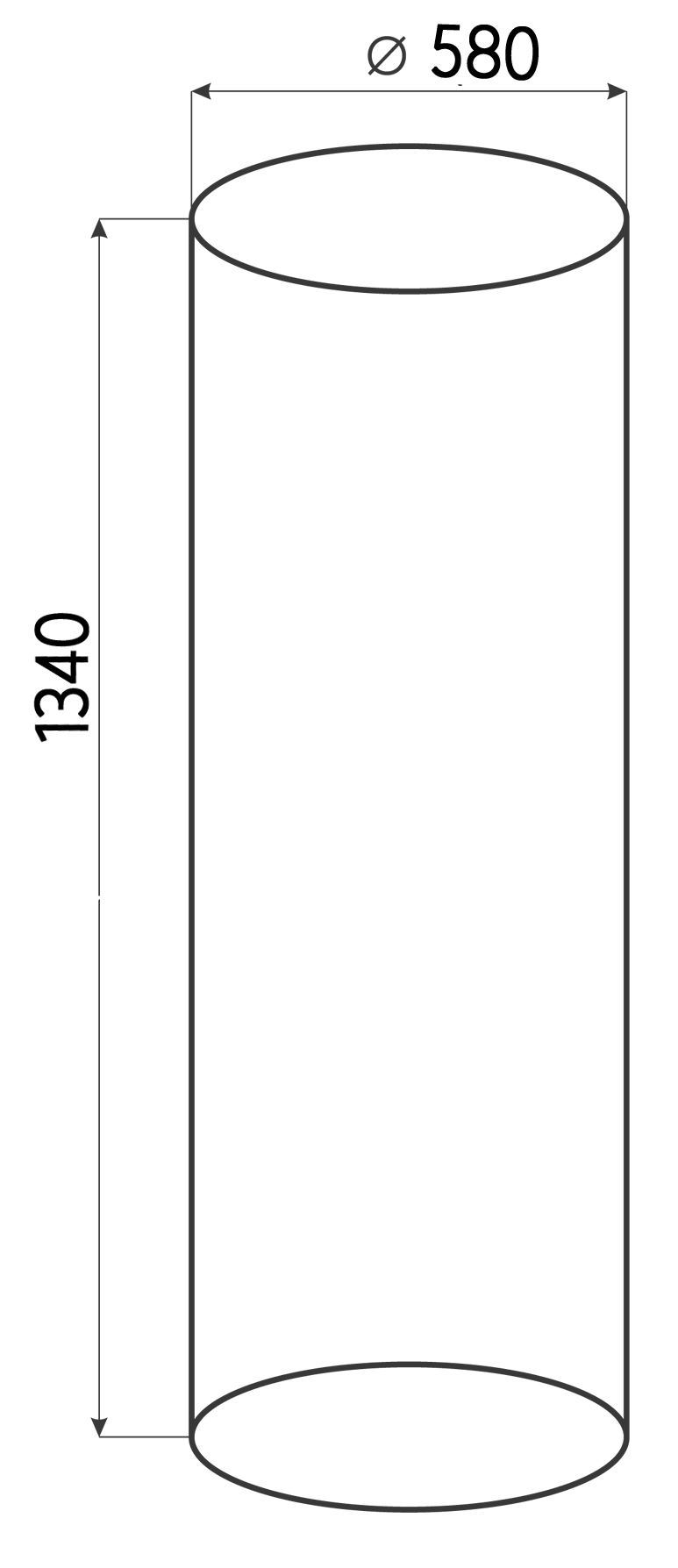

- Height [mm]:
- 1340
- Installation height / tilt height [mm]:
- 1460
- Storage tank capacity [dm³]:
- 200
- Coil surface area [m²]:
- 2.53
- Circulation connection:
- 3/4"
- DHW return connection:
- 3/4"
- DHW supply connection:
- 3/4"
- Diameter [mm]:
- 580
- Type and thickness of insulation:
- PU/50
