Buffer tank Termet Energy 200 for CH
Termet ENERGY tanks are designed exclusively for heating and storing central heating water. The device is durable, made of high-grade steel.
• Designed for use with heat pumps
• Ideal for storing central heating water
• Ensures stable heat pump operation by reducing the number of compressor starts, resulting in lower power consumption and extended service life
• Easy to install thanks to their compact dimensions
• Energy efficiency class C
• Side connection of connectors
• Ability to connect multiple heat sources
• Made of high-grade steel
• Corrosion resistance
• High-quality polyurethane foam thermal insulation
• 50 mm insulation thickness
• Ability to connect an electric heating element
• Includes a vent port
• Aesthetically pleasing Blueshell casing (polyethylene cover)
• Maximum operating temperature 95°C
• Maximum operating pressure 6 bar
- Electric heater connection:
- 1 1/2"
- Additional connection:
- 1 1/4"
- Filling connection:
- 1 1/4"
- Vent connection:
- 1 1/4"
- Supply/return connection Gw:
- 1 1/4"
- Temperature sensor connection:
- 1/2"

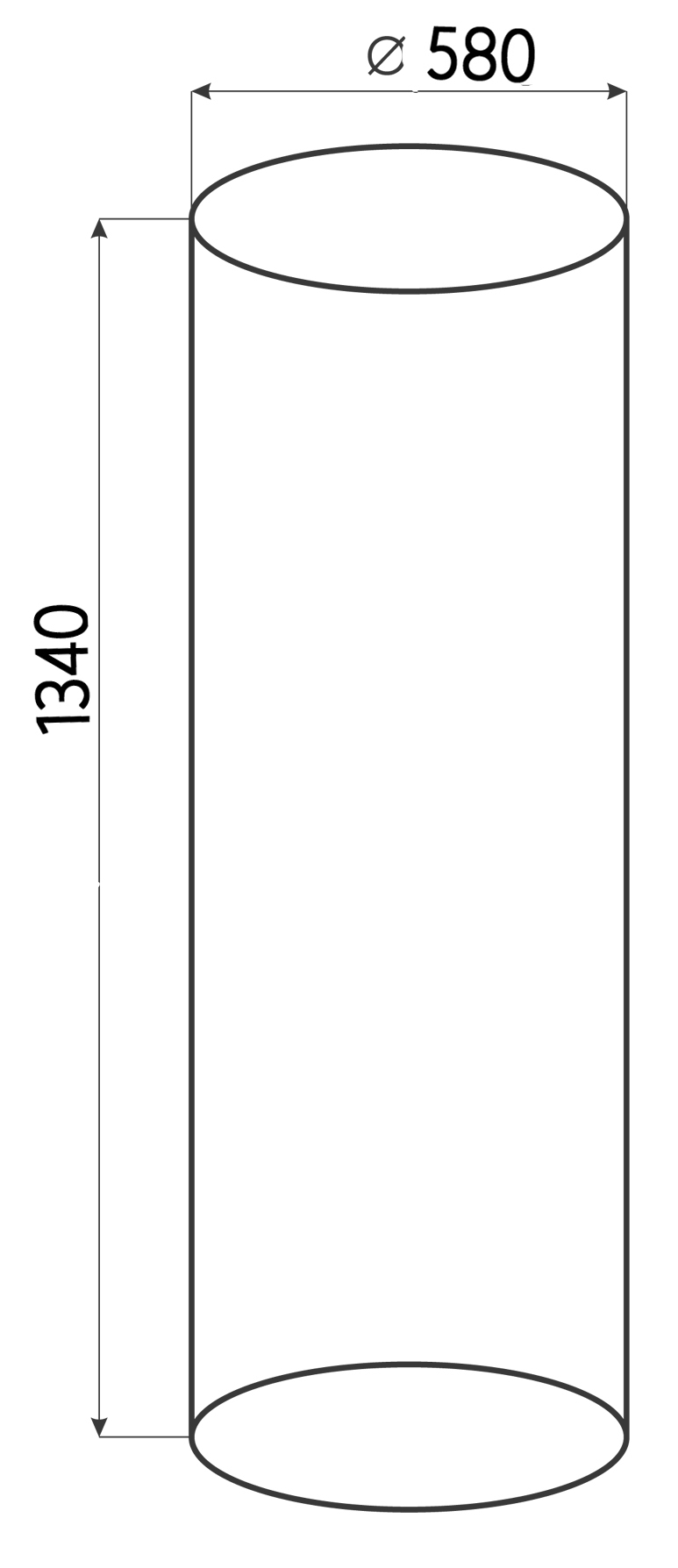

- Height [mm]:
- 1340
- Installation height / tilt height [mm]:
- 1460
- Storage tank capacity [dm³]:
- 200
- Diameter [mm]:
- 580
- Net weight (without water) [kg]:
- 60
- Type and thickness of insulation:
- PU/50
