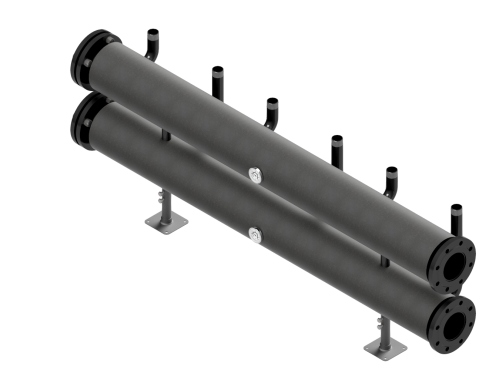

Collector MK 125 2F – DN 125
The MK 125 - DN 125 hydraulic manifold is made of steel. Designed for connecting boilers in cascade systems, it comes complete with insulation, two blind flanges with couplings, two bimetallic thermometers, two 1/2" blind plugs, mounting feet, a set of 16 mounting screws, and four DN 125 EPDM seals.
Technical specifications:
Material: steel
Maximum pressure: 6 bar
Maximum temperature: 90°C
Insulation: EPP
Connection: installation side: DN125 flange, boiler side: 1 1/4" external thread
Flange pressure standard: PN 10/16
