Collector MK 80 2F – DN 80

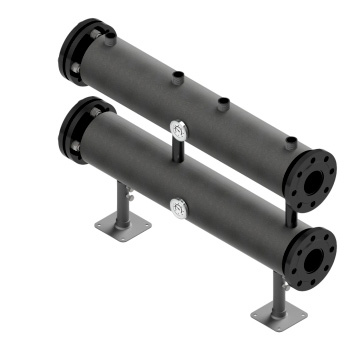

The MK 80 - DN 80 hydraulic manifold is made of steel. Designed for connecting boilers in cascade systems, it comes complete with insulation, two blind flanges with couplings, two bimetallic thermometers, two 1/2" blind plugs, mounting feet, a set of 16 mounting screws, and four DN 80 EPDM seals.
Technical specifications:
- Material: steel
- Maximum pressure: 6 bar
- Maximum temperature: 90°C
- Insulation: EPP
- Connection: installation side: DN 80 flange, boiler side: 1 1/4" external thread
- Flange pressure standard: PN 10/16
