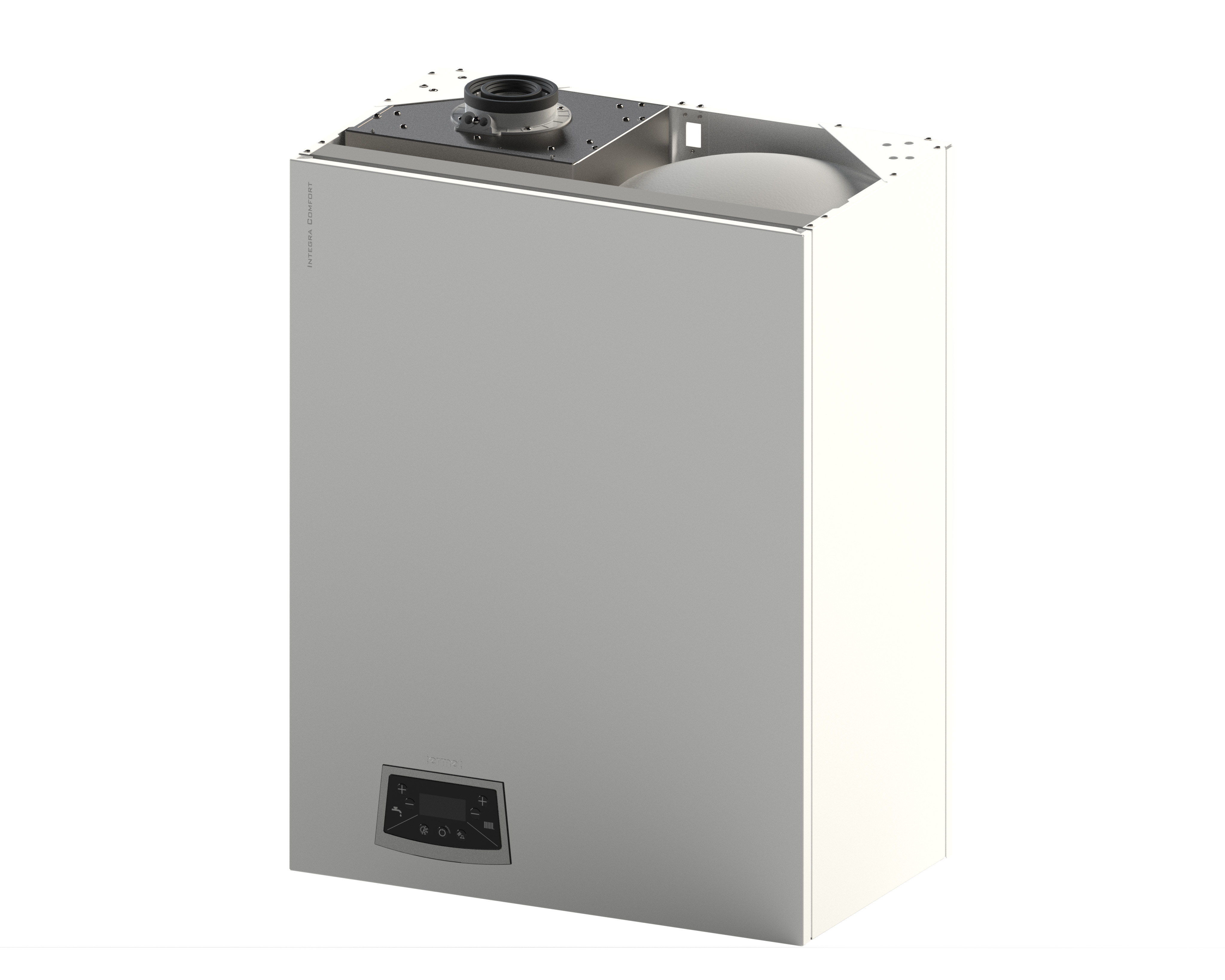

Gas condensing boiler Integra Comfort 20 kW combi
INTEGRA COMFORT
INTEGRA COMFORT is a modern, gas-fired, wall-mounted condensing boiler with a built-in 50-liter storage tank. A complete heating system in an elegant design, it provides reliable hot water production thanks to the efficient storage tank. The expansion tank for central heating and domestic hot water is easily accessible after removing the cover. The 50-liter storage tank guarantees instant access to hot water upon turning on the tap. Furthermore, the high-output coil ensures instant water heating in the tank. - Internet control - room temperature management via smartphone or tablet using the Termet Comfort System package
- ability to connect a controller with a 0-10 V signal or Open-Therm communication,
- quiet operation thanks to additional sound insulation,
- reliable hot water preparation thanks to the built-in, efficient 50-liter tank,
- tank shell and coil made of stainless steel,
- a cylindrical burner made of stainless steel allows for a very wide modulation range (starting from 13% of maximum power),
- a compact, high-efficiency heat exchanger in the form of a single, spirally wound stainless steel coil with low hydraulic resistance and high scaling resistance,
- a modern and easy-to-use control panel with an LCD display and full self-diagnostics,
- adapts to various gas types without the need for physical intervention in the device,
- a complete security system,

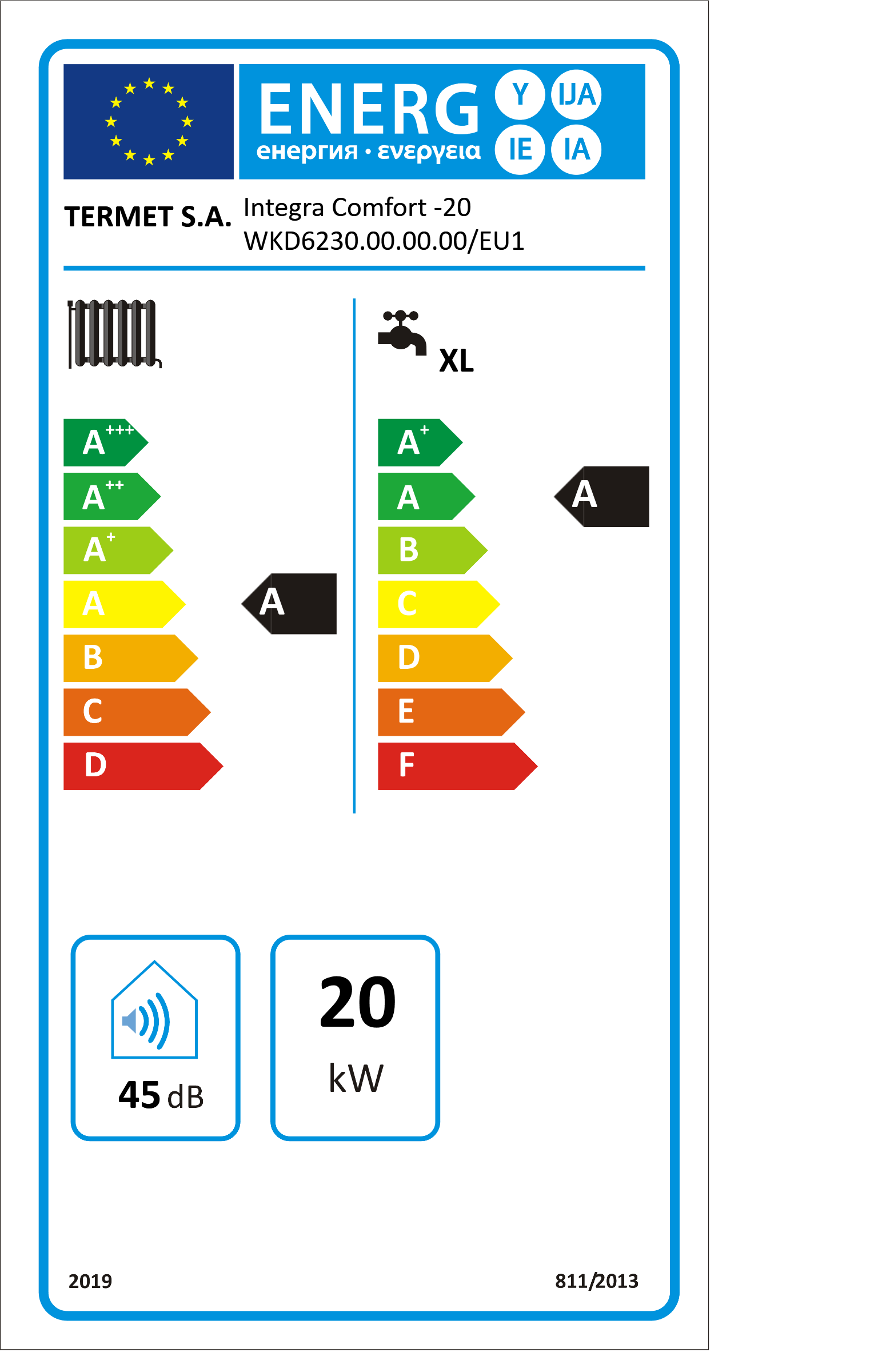

- seasonal energy efficiency class: room heating: A, water heating: A
- Anti-Legionella function,
- Possibility of connecting a circulation system,
- Attractive design
- Built-in adapter with 60/100 mm diameter measuring ports,
- Possibility of using a separate air/flue gas system using a TWIN air/flue gas distributor.
- Tank position:
- vertical
- Maximum water pressure [bar]:
- 3
- Domestic water connection:
- G1/2
- Standard setpoint temperature [°C]:
- 40 - 80
- Coil output [kW]:
- 28
- Electrical consumption at part load elmin [kW]:
- 0.06
- Heat load [kW]:
- 3,3 - 20,0
- Nitrogen oxide (NOx) emission class:
- 6
- Boiler useful efficiency at part load and 30°C return water temperature [%]:
- 108.7
- Heating water and gas connection:
- G3/4
- Water heating energy efficiency ηwh [%]:
- 87
- Water pressure [bar]:
- 0,1 - 6,0
- Degree of protection (IP rating):
- IPX4D
- Water temperature control range [°C]:
- 30 - 60
- Sound power level LWA [dB]:
- 45
- Standby power consumption PSB [kW]:
- 0.005
- Electrical consumption at full load elmax [kW]:
- 0.09
- Seasonal space heating energy efficiency class:
- A
- Reduced setpoint temperature [°C]:
- 25 - 55
- Useful efficiency η4 [%]:
- 89.3
- Useful heat output at nominal heat output P4 (for modulating boilers arithmetic mean of max and min) [kW]:
- 20.3
- Heating capacity (at 50/30°C) [kW]:
- 3,6 - 22,6
- Type and voltage of electrical power supply:
- ~ 230 ±10%/ 50Hz V
- Boiler useful efficiency at nominal load and 70°C average water temperature [%]:
- 99.2
- Minimum water flow [dm³/min]:
- 2.7
- Maximum CH operating temperature [°C]:
- 95
- Heating capacity (at 80/60°C) [kW]:
- 3,3 - 19,9
- Expansion vessel capacity [dm³]:
- 6
- Nominal boiler heat output (at 80/60°C) [kW]:
- 3,3 - 25,6
- Overall dimensions (H x W x D) [mm]:
- 937 x 690 x 410
- Connection to flue gas duct:
- concentric Φ80/125; concentric Φ60/100 or 2 single Φ80
- Useful heat output at 30% nominal output P1 (for modulating boilers 30% arithmetic mean) [kW]:
- 6.9
- Useful efficiency η1 [%]:
- 98.4
- Boiler weight [kg]:
- 61
- Max. condensate amount (natural gas) [l/h]:
- 2
- Storage tank capacity [dm³]:
- 50
- Pump head at zero flow [bar]:
- 0.6
- Water heating energy efficiency class:
- A
- Seasonal space heating energy efficiency ηs [%]:
- 95
- Nominal heat input [kW]:
- 3,3 - 25,8
- Load profile:
- XL
- Domestic water flow rate for Δt 30K [dm³/min]:
- 12.2
- Nitrogen dioxide emission level [mg/kWh]:
- 26
- Coil capacity [dm³]:
- 4
