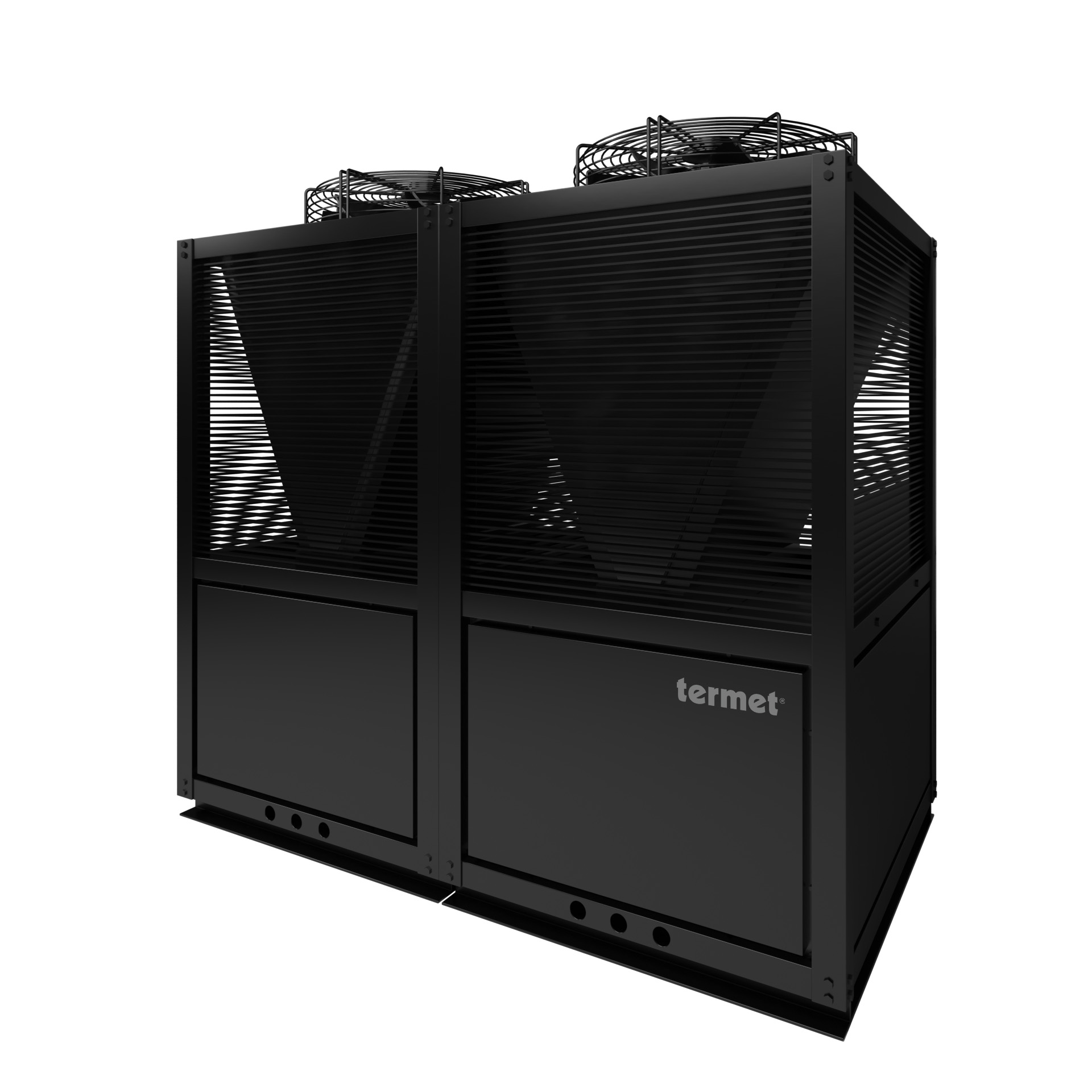

Heat pump Termet Heat Power 70
TERMET HEAT
Termet Heat Power air-to-water heat pumps are an ideal solution for heating large buildings, such as:
• multi-family buildings
• guesthouses
• hotels
• production halls
• warehouses
• kindergartens
• schools
• public buildings
• office complexes
• sports facilities
They can serve as a heat source in both modernized and new central heating systems. Termet Heat Power reversible heat pumps are a comprehensive solution, as they can not only heat rooms but also cool them in the summer, and when connected to a hot water tank, they can also heat domestic water. Thanks to their monoblock design, they are easy to install because they do not require costly drilling or earthworks. Termet Heat Power heat pumps can be connected in a cascade (up to 5 units)
• Modern reversible heat pump that allows for heating and cooling of rooms
• Monoblock design
• Outdoor installation
• Electronic expansion valve ensures excellent refrigerant temperature control and higher heat pump efficiency
• Quiet and highly efficient axial fan
• Vertically positioned air outlet reduces noise
• Extremely durable Copeland scroll compressor
• EVI direct vapor injection technology ensures efficient heating even at low outdoor temperatures
• Housing made of weather-resistant materials
• Can be connected in cascade systems (up to 5 units)
• Easy control of the unit's operation using the HPmulti controller – the controller is equipped with a color touchscreen
• Ability to control and monitor heat pump operating parameters online using the ecoNET300 module
• HPmulti controller and ecoNET300 module included with the heat pump
- Electrical power input (A7/W35) [kW]:
- 15
- GWP:
- 1774
- Overall dimensions (H x W x D) [mm]:
- 1850 x 1847 x 1100
- Compressor:
- 2 x Scroll
- Supply:
- 400V/3/50Hz
- COP (A7/W35):
- 4,18
- Heating capacity (A7/W35) [kW]:
- 65.04
- Sound power level Lw [dB]:
- 68
- Weight [kg]:
- 760
- Refrigerant charge in the system [kg]:
- 8,4 (2x4,2)
- Seasonal space heating energy efficiency class:
- A+
- Lower source (air) temperature range [°C]:
- from -25 to 43
- Heating system temperature range [°C]:
- to 55
- Degree of protection (IP rating):
- IPX4
- Refrigerant:
- R407C
