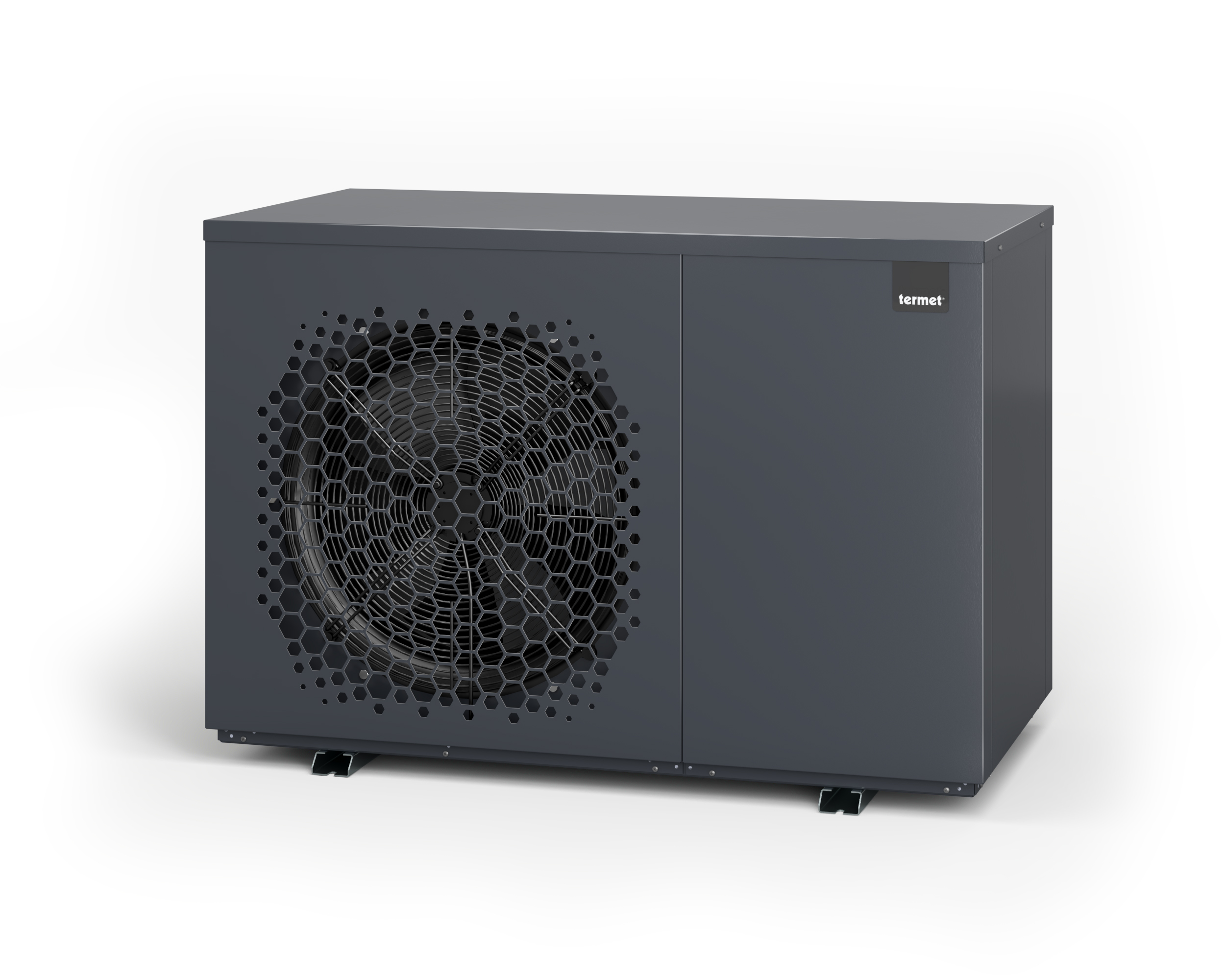

Heat pump Termet Heat Titanium Pro 12
TERMET HEAT TITANIUM PRO
Termet Heat Titanium Pro monoblock air-to-water heat pumps with R290 refrigerant are innovative and ecological solutions for heating and cooling buildings that combine high energy efficiency with low environmental impact. The main advantages of the heat pump include:
• listed on the ZUM (Union of Municipal Water Management) list
• heat pump tested in an accredited laboratory
• modern reversible heat pump that allows for heating and cooling
• monoblock design – installation is possible without the installer having a gas certification
• Mitsubishi inverter scroll compressor designed for propane
• natural and eco-friendly propane refrigerant (R290) with very good thermodynamic properties
• very low GWP = 3 (global warming potential)
• housing made of weather-resistant sheet metal
• HyBlade fan impeller technology combines the durability of an aluminum core with an aerodynamically optimized blade shape
• electronic expansion valve ensures precise control of the refrigeration system's operating parameters and heat pump efficiency
• high water temperature at the heat pump outlet (above 55°C), making it ideal for radiator systems:
• max. 55°C – without an additional heater/heat source in the system
• max. 75°C - with an additional heater/heat source in the system
• Intelligent defrost activated only when necessary - ensuring long-term heat pump operation and reducing heat loss
• ProTect function - an innovative safety system for propane heat pumps
• Easy control of the device's operation using the HPmulti controller - the controller is equipped with a color touchscreen display
• Support for up to 3 heating circuits and a DHW tank as standard
• Ability to control and monitor heat pump operating parameters online using the xCloud module
• HPmulti controller and xCloud module included with the heat pump
- Pressure drop on heating side [kPa]:
- 10
- Heating capacity (A7/W35) [kW]:
- 10.7
- Overall dimensions (H x W x D) [mm]:
- 1500 x 1150 x 620
- Refrigerant charge in the system [kg]:
- 1.7
- Electrical power input (A7/W35) [kW]:
- 2.6
- GWP:
- 3
- Supply:
- 400 V, 50Hz, 3~/N/PE
- COP (A7/W35):
- 4,1
- Maximum DHW temperature [°C]:
- 55
- Seasonal space heating energy efficiency class:
- A++
- Lower source (air) temperature range [°C]:
- from -25 to 43
- Degree of protection (IP rating):
- IPX4D
- Heating system temperature range [°C]:
- od 20 do 55
- Refrigerant:
- R290
- Compressor:
- Scroll
