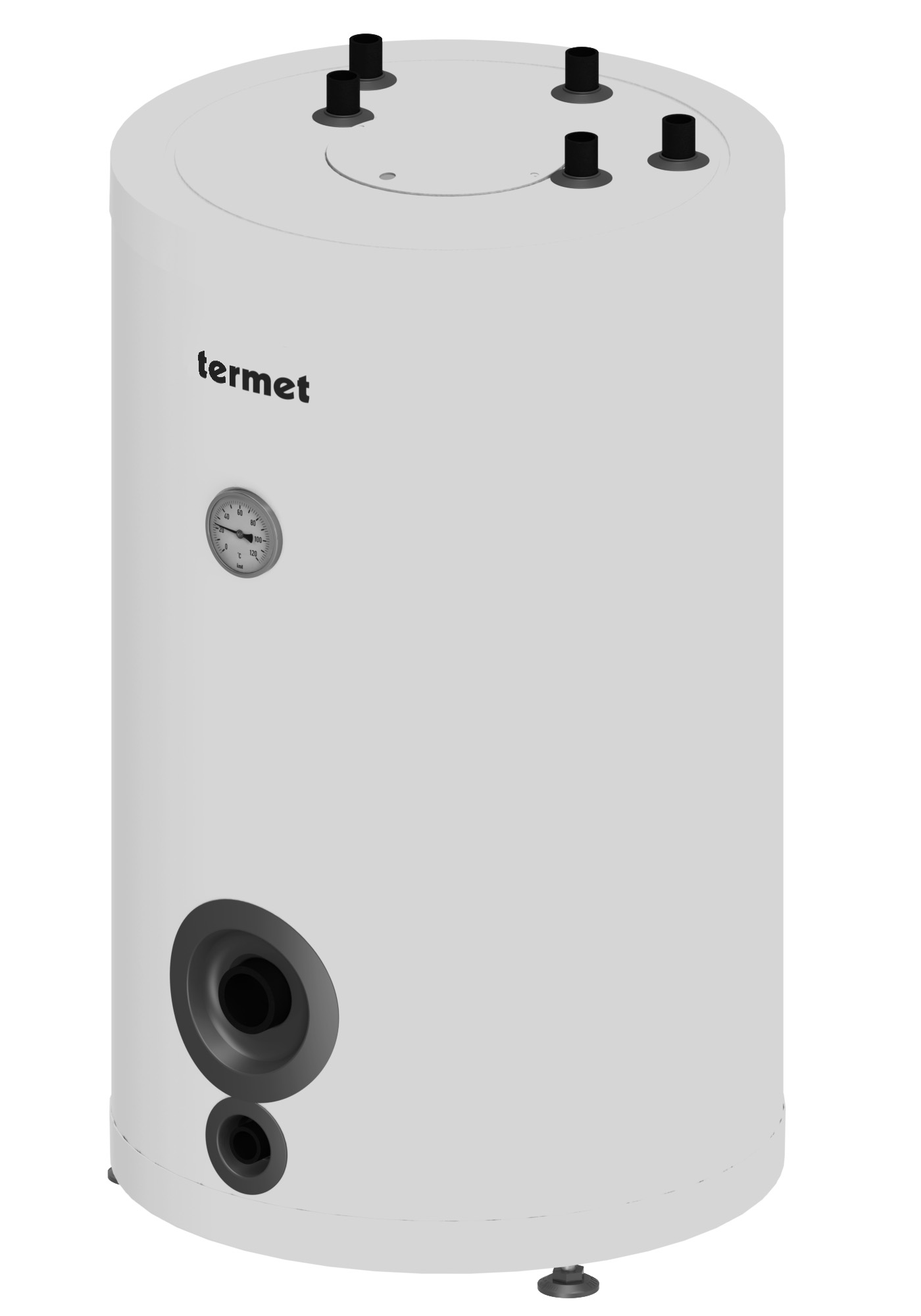

Termet SG Plus 100 tank for DHW
The TERMET SG Plus cylinder is a state-of-the-art solution for supplying hot water to single-family and multi-family homes, as well as public buildings with multiple domestic hot water draw-off points. Its height (not exceeding 1000 mm) allows for easy placement under a boiler or in a low boiler room, and a connection port for connecting an EJK mini electric heating element.
- Top-mounted inlet
- Durable and safe to use
- Easy to service and install
- The container cover is made of high-quality plastic or imitation leather
- Tank made of sheet steel with an internal layer of special ceramic enamel that protects against corrosion and ensures high-quality heated water
- Built-in magnesium anode prevents tank corrosion
- Safety valve included
- Heating medium parameters – max. operating pressure [MPa]:
- 0.6
- Tank operating parameters – max. operating pressure [MPa]:
- 0.6
- Storage tank capacity [dm³]:
- 100
- Daily heat loss [kWh/24h]:
- 1.04
- Constant DHW output (80/10/45°C) [dm³/min]:
- 13
- Coil surface area [m²]:
- 1.3
- Initial DHW output (initial temperature 60°C) 80/10/45°C [dm³/10 min]:
- 190
- Heating water demand [m³/h]:
- 3
- Circulation connection:
- 3/4"
- Constant heating capacity (80/10/45°C) [kW]:
- 35
- Tank diameter [mm]:
- 542
- Coil capacity [dm³]:
- 6
- Storage tank weight without water [kg]:
- 70
- Tank height [mm]:
- 895
- Water flow resistance in coil [mbar]:
- 95
- Operating temperature tm [°C]:
- 95
- Water heating energy efficiency class:
- A
- Hot water connection:
- G3/4
- Heating water connection:
- G3/4
- Cold water connection:
- G3/4
