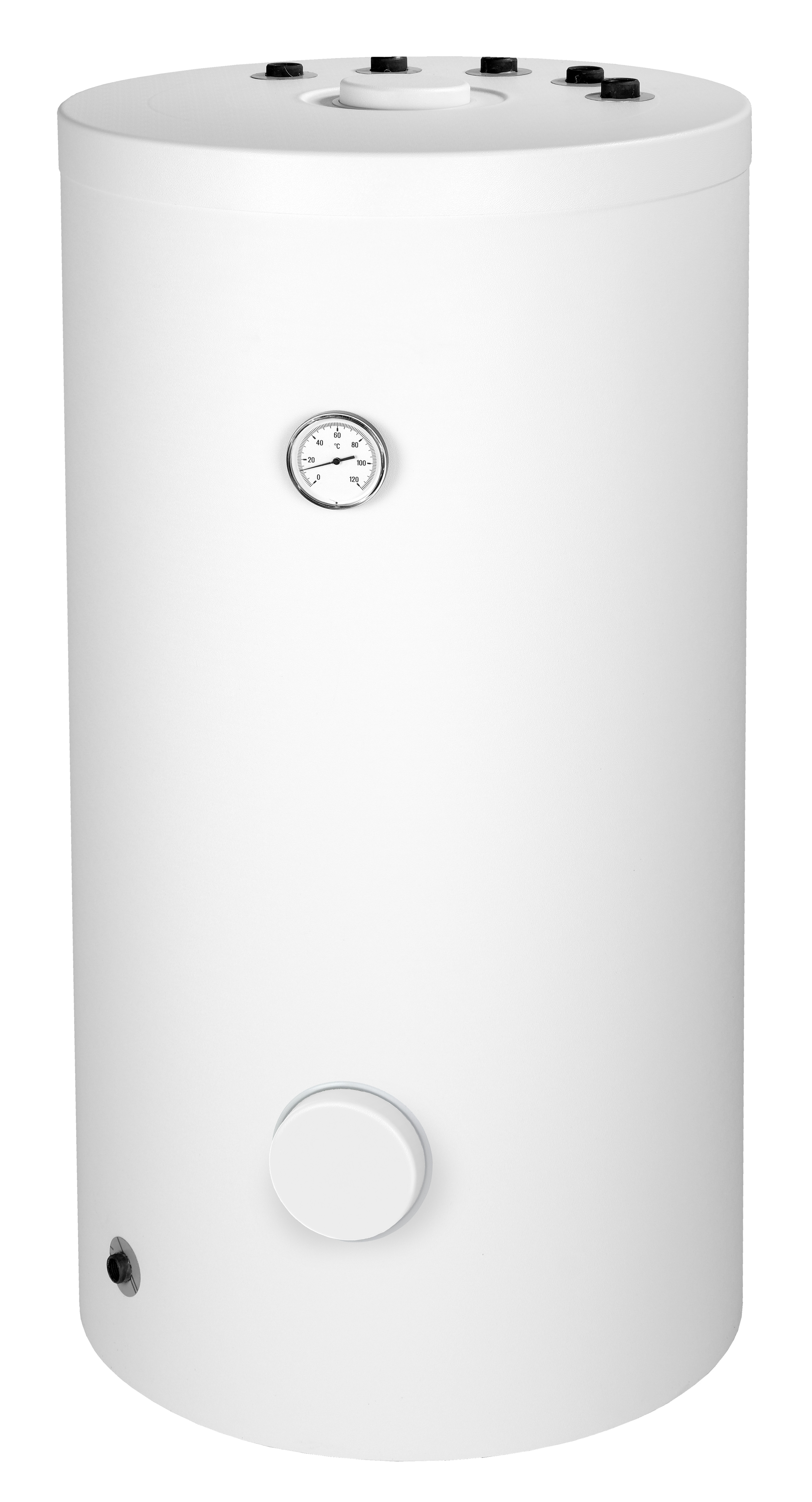

Termet SWK 100 tank for DHW
The TERMET SWK cylinder is a state-of-the-art solution for supplying hot water to single-family and multi-family homes, as well as public buildings with multiple domestic hot water draw-off points. Its compact size allows for easy installation, including in low-ceilinged boiler rooms.
• Compatible with single-function condensing boilers:
• Top-fed
• Durable and safe to operate
• Easy to service and install
• Housing made of sheet steel with a white powder coating
• Tank made of sheet steel with an internal layer of special ceramic enamel to protect against corrosion and ensure high-quality heated water
• Built-in magnesium anode to prevent tank corrosion
- Tank operating parameters – max. operating pressure [MPa]:
- 0.6
- Coil surface area [m²]:
- 0.82
- Heating medium parameters – max. operating pressure [MPa]:
- 1,0
- Storage tank capacity [dm³]:
- 100
- Constant DHW output (80/10/45°C) [dm³/min]:
- 10.42
- Constant heating capacity (80/10/45°C) [kW]:
- 25
- Circulation connection:
- 3/4"
- Coil capacity [dm³]:
- 5.3
- Storage tank weight without water [kg]:
- 58
- Tank diameter [mm]:
- 595
- Operating temperature tm [°C]:
- 80
- Tank height [mm]:
- 906
- Water heating energy efficiency class:
- A
- Hot water connection:
- G3/4
- Heating water connection:
- G3/4
- Cold water connection:
- G3/4
