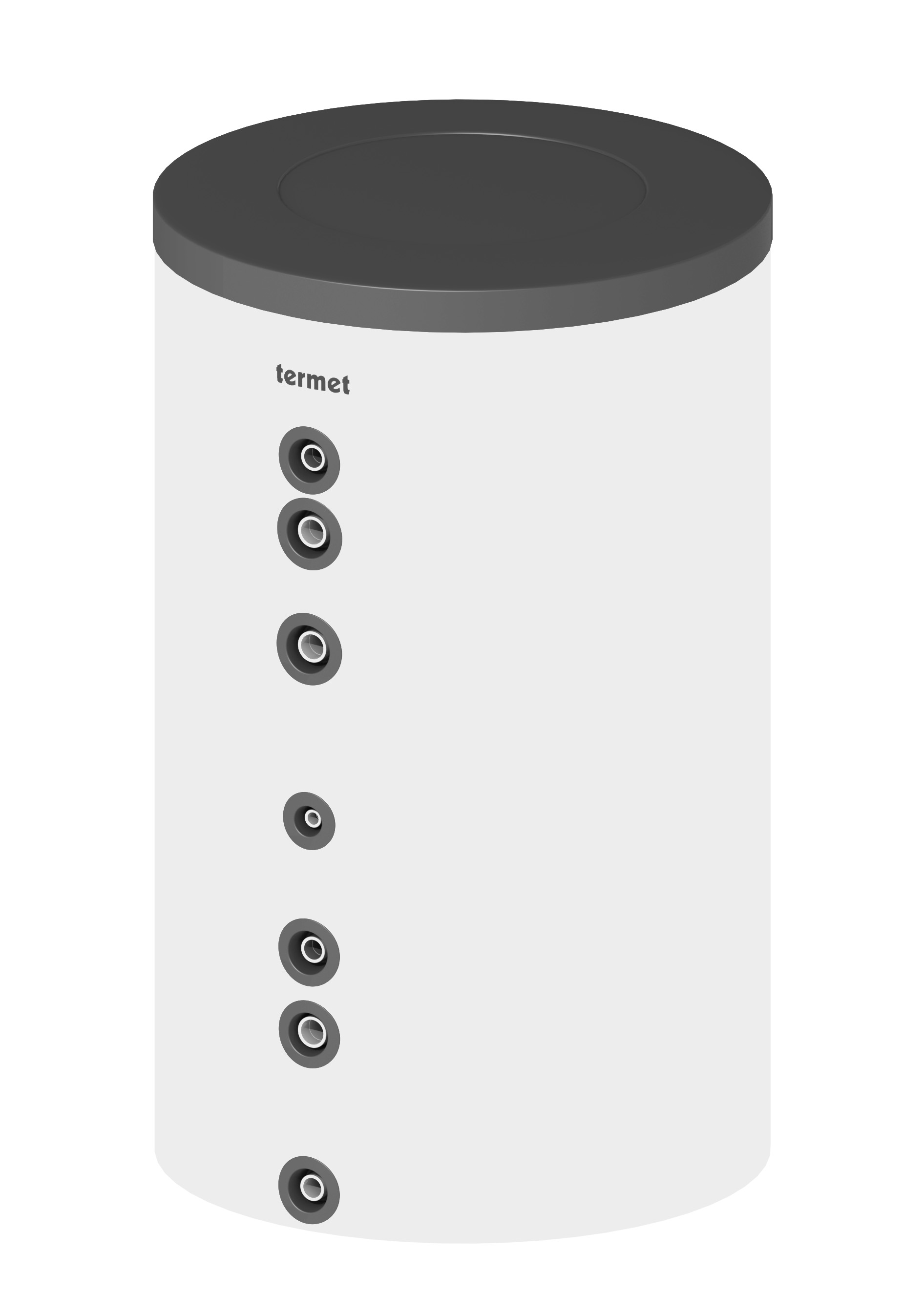

Termet ZWU 200/N Plus tank for DHW
The ZWU-200/N storage tank is a state-of-the-art solution for supplying hot water to single-family and multi-family homes, as well as public buildings with multiple domestic hot water draw-off points.
• Includes a connection for the EJK mini electric heater
• Compatible with single-function condensing boilers
• Housing made of sheet steel
• Tank made of sheet steel with an internal layer of special ceramic enamel to protect against corrosion and ensure high-quality heated water
• Built-in magnesium anode to prevent tank corrosion
• Equipped with a safety valve
- Heating medium parameters – max. operating pressure [MPa]:
- 0.6
- Tank operating parameters – max. operating pressure [MPa]:
- 0.6
- Daily heat loss [kWh/24h]:
- 0.81
- Tank height [mm]:
- 1200
- Coil surface area [m²]:
- 1.65
- Storage tank capacity [dm³]:
- 200
- Heating water demand [m³/h]:
- 2.2
- Circulation connection:
- 3/4"
- Storage tank weight without water [kg]:
- 65
- Water flow resistance in coil [mbar]:
- 70
- DHW output (60/10/45°C) [dm³/h]:
- 710
- Tank diameter [mm]:
- 720
- Operating temperature tm [°C]:
- 80
- Water heating energy efficiency class:
- A
- Heating water connection:
- G1
- Hot water connection:
- G3/4
- Cold water connection:
- G3/4
