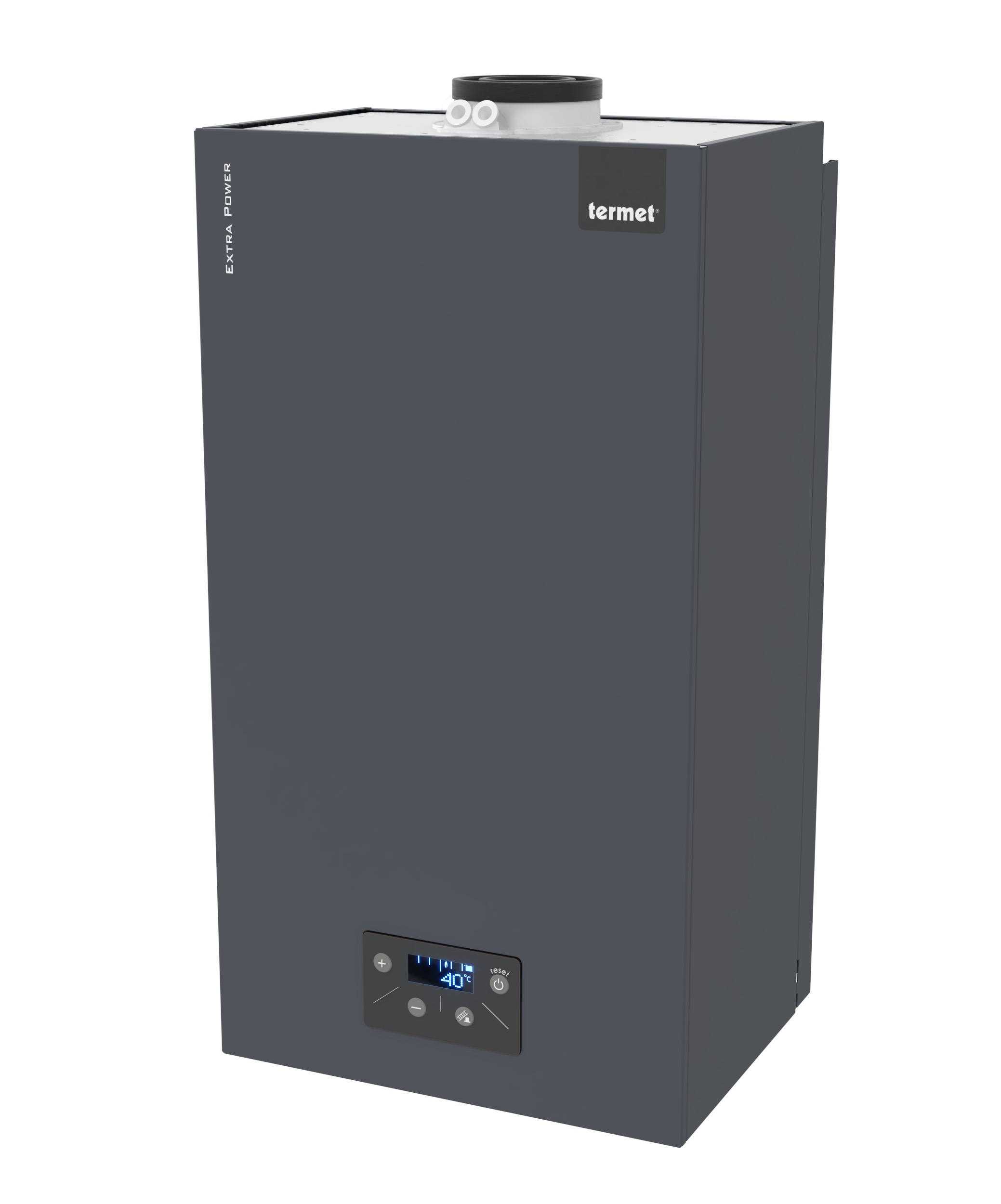

Gas condensing boiler Extra Power 20 kW system

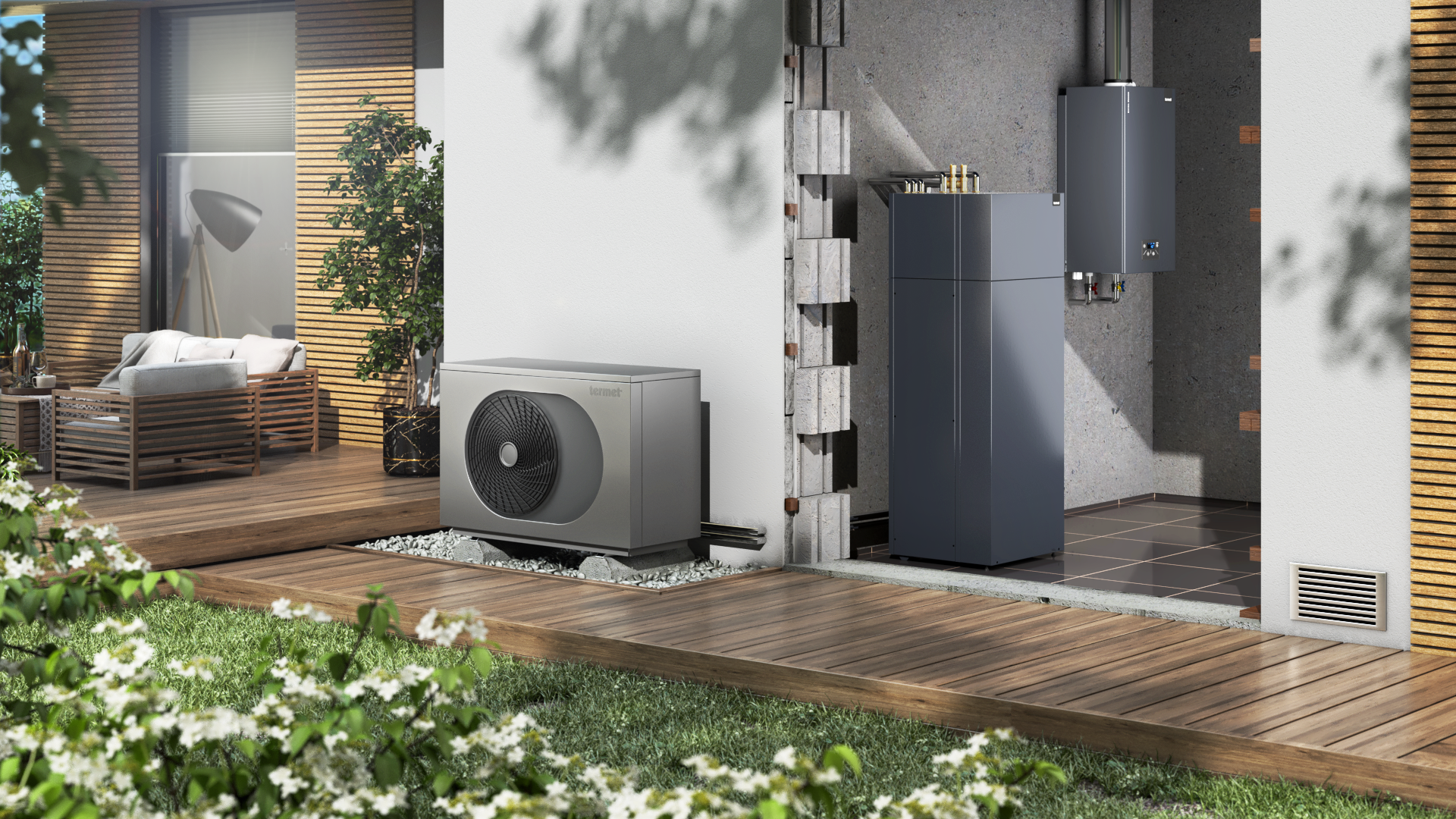

EXTRA POWER is a new product on the heating equipment market, designed to address the increasingly common problems with heat pump operation, for example, during winter or during unfavorable weather conditions, such as windstorms, heavy rainfall, and storms. All of this compromises the operation of not only the heat pump but also other energy sources. In such situations, the EXTRA POWER boiler can be successfully used. EXTRA POWER is a condensing boiler specifically designed to work with heat pumps. It is the ideal backup for heat pumps, especially during periods of increased heat demand. This combination ensures comfort even during the coldest winter months. Thanks to its cylinder-powered operation, it can be successfully used anywhere there is no connection to the gas grid. An additional advantage is that it can be installed at any stage of the heat pump's lifespan and, most importantly, does not require major modifications to the central heating system. EXTRA POWER differs from the familiar condensing boilers in its design – its construction has been adapted to work with heat pumps. The concept of its installation is similar to that of a flow-through heater. The boiler includes a manifold assembly that regulates the flow of heating water, allowing the boiler to be adapted to the characteristics of the heating system. Compared to typical condensing boilers, the EXTRA POWER does not have its own circulation pump or 3-way valve, as these functions are implemented within the existing installation.
The device serves as a backup to the heat pump and cannot operate as a standalone heating unit.
- Standby power consumption PSB [kW]:
- 0.002
- Electrical consumption at part load elmin [kW]:
- 0.054
- Electrical consumption at full load elmax [kW]:
- 0.066
- Useful efficiency η1 [%]:
- 100
- Boiler useful efficiency at part load and 30°C return water temperature [%]:
- 108
- Useful heat output at nominal heat output P4 (for modulating boilers arithmetic mean of max and min) [kW]:
- 19.1
- Type and voltage of electrical power supply:
- ~ 230 ±10%/ 50Hz V
- Reduced setpoint temperature [°C]:
- 25 - 55
- Boiler weight [kg]:
- 29
- Maximum water pressure [bar]:
- 3
- Heating capacity (at 80/60°C) [kW]:
- 3,3 - 19,1
- Heat load [kW]:
- 3,4 - 19,5
- Nitrogen dioxide emission level [mg/kWh]:
- 35
- Heating capacity (at 50/30°C) [kW]:
- 3,7 - 21,0
- Standard setpoint temperature [°C]:
- 40 - 80
- Sound power level LWA [dB]:
- 48
- Nitrogen oxide (NOx) emission class:
- 6
- Useful heat output at 30% nominal output P1 (for modulating boilers 30% arithmetic mean) [kW]:
- 6.3
- Overall dimensions (H x W x D) [mm]:
- 775 x 400 x 310
- Useful efficiency η4 [%]:
- 90.4
- Maximum CH operating temperature [°C]:
- 95
- Boiler useful efficiency at nominal load and 70°C average water temperature [%]:
- 98
- Seasonal space heating energy efficiency class:
- A
- Degree of protection (IP rating):
- IPX4D
